HTML+CSS静态网页练习案例(转动的八卦图)

需要的知识

1.div标签的运用

2.id选择器,后代选择器,

3.简单的css样式长,宽,高,背景颜色,浮动,绝对定位,边框弧度

4.div的布局特点

静态的完成效果


动态效果(点击链接观看)

太极页面1446450047.github.io

开始

HTML部分


html lang="zh">
head>
    meta charset="UTF-8">
    meta name="viewport" content="width=device-width, initial-scale=1.0">
    title>太极页面title>
head>
body>
    div id="八卦-wrapper">
        div id="八卦">
            div>div>
            div>div>
            div>div>
            div>div>
            div>div>
            div>div>
        div>
        div id="八卦-描述">道可道,非常道div>
    div>
body>
html>

HTML部分说明

1.其中最外面的id为八卦-wrapper为包住八卦的最大的div
2.id 为八卦的div为上图中的八卦

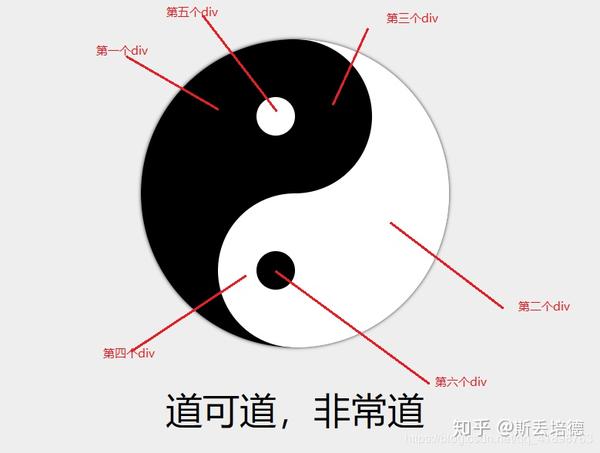

3.八卦里面的div为 下图指示部分


CSS部分

CSS部分说明

通过改变每个div的大小颜色,浮动的left,top值,改变每个div的border-redius的值来画这个八卦图

 style>
        * {
            box-sizing: border-box;
            margin: 0px;
            padding: 0px;
        }
        body {
            background-color: #eeeeee;
        }
        #八卦 {

            width: 400px;
            height: 400px;
            border-radius: 200px;
            position: relative;
            overflow: hidden;
            animation: x 10s linear infinite;
            box-shadow: 0px 0px 5px 0px rgba(0, 0, 0, 1);
        }
        #八卦>div:first-child {
            width: 50%;
            height: 100%;
            position: absolute;
            left: 0;
            background-color: black;
        }

        #八卦>div:nth-child(2) {
            width: 50%;
            height: 100%;
            position: absolute;
            right: 0;
            background-color: white;
        }
        #八卦>div:nth-child(3) {
            width: 200px;
            height: 200px;
            position: absolute;
            left: 50%;
            margin-left: -100px;
            border-radius: 50%;
            background-color: black;
        }
        #八卦>div:nth-child(4) {
            width: 200px;
            height: 200px;
            position: absolute;
            left: 50%;
            top: 50%;
            margin-left: -100px;
            border-radius: 50%;
            background-color: white;
        }
        #八卦>div:nth-child(5) {
            width: 50px;
            height: 50px;
            position: absolute;
            left: 50%;
            top: 75px;
            margin-left: -50px;
            border-radius: 50%;
            background-color: white;
        }
        #八卦>div:nth-child(6) {
            width: 50px;
            height: 50px;
            position: absolute;
            left: 50%;
            bottom: 75px;
            margin-left: -50px;
            border-radius: 50%;
            background-color: black;
        }
        #八卦-wrapper {
            height: 100vh;
            display: flex;
            justify-content: center;
            align-items: center;
            flex-direction: column;
        }
        #八卦-描述 {
            margin-top: 1em;
            font-size: 3em;
        }
   style>

完整代码


html lang="zh">

head>
    meta charset="UTF-8">
    meta name="viewport" content="width=device-width, initial-scale=1.0">
    title>太极页面title>
    style>
        * {
            box-sizing: border-box;
            margin: 0px;
            padding: 0px;
        }

        body {
            background-color: #eeeeee;
        }


        #八卦 {

            width: 400px;
            height: 400px;
            border-radius: 200px;
            position: relative;
            overflow: hidden;
            animation: x 10s linear infinite;
            box-shadow: 0px 0px 5px 0px rgba(0, 0, 0, 1);
        }



        #八卦>div:first-child {
            width: 50%;
            height: 100%;
            position: absolute;
            left: 0;
            background-color: black;
        }

        #八卦>div:nth-child(2) {

            width: 50%;
            height: 100%;
            position: absolute;
            right: 0;
            background-color: white;
        }

        #八卦>div:nth-child(3) {
            width: 200px;
            height: 200px;
            position: absolute;
            left: 50%;
            margin-left: -100px;
            border-radius: 50%;
            background-color: black;
        }


        #八卦>div:nth-child(4) {
            width: 200px;
            height: 200px;
            position: absolute;
            left: 50%;
            top: 50%;
            margin-left: -100px;
            border-radius: 50%;
            background-color: white;
        }



        #八卦>div:nth-child(5) {
            width: 50px;
            height: 50px;
            position: absolute;
            left: 50%;
            top: 75px;
            margin-left: -50px;
            border-radius: 50%;
            background-color: white;
        }



        #八卦>div:nth-child(6) {
            width: 50px;
            height: 50px;
            position: absolute;
            left: 50%;
            bottom: 75px;
            margin-left: -50px;
            border-radius: 50%;
            background-color: black;
        }



        #八卦-wrapper {
            height: 100vh;
            display: flex;
            justify-content: center;
            align-items: center;
            flex-direction: column;
        }


        #八卦-描述 {
            margin-top: 1em;
            font-size: 3em;
        }

    style>
head>

body>
    div id="八卦-wrapper">
        div id="八卦">
            div>div>
            div>div>
            div>div>
            div>div>
            div>div>
            div>div>
        div>
        div id="八卦-描述">道可道,非常道div>
    div>
body>

html>

注意事项

1.id可以用中文 ,但是文件名和路径不能(最好不要)
2.一定要注意清楚浏览其的默认样式
3.能不写死就千万不要写死,最好用百分比代替像素(防止用户改变分辨率造成的bug)
4.父元素relative,子元素absolute
5.注意几个div的偏移位置,可以加boder: 1px,solid,red;来确定位置后调试
6.第27行代码为让八卦转起来在静态八卦中不起作用

让八卦转起来

/*先定义一个@keyframes 命名为x*/
	@keyframes x {
            from {
                transform: rotate(0deg);
            }
            to {
                transform: rotate(360deg);
            }
        }
/*在id="八卦"中添加样式  animation: x 10s linear infinite;*/
 #八卦 {

            width: 400px;
            height: 400px;
            border-radius: 200px;
            position: relative;
            overflow: hidden;
            animation: x 10s linear infinite;/*添加此行*/
            box-shadow: 0px 0px 5px 0px rgba(0, 0, 0, 1);
        }

转动的八卦完整代码


html lang="zh">

head>
    meta charset="UTF-8">
    meta name="viewport" content="width=device-width, initial-scale=1.0">
    title>太极页面title>
    style>
        * {
            box-sizing: border-box;
            margin: 0px;
            padding: 0px;
        }

        body {
            background-color: #eeeeee;
        }

		@keyframes x {
            from {
                transform: rotate(0deg);
            }

            to {
                transform: rotate(360deg);
            }
        }
        #八卦 {

            width: 400px;
            height: 400px;
            border-radius: 200px;
            position: relative;
            overflow: hidden;
            animation: x 10s linear infinite;
            box-shadow: 0px 0px 5px 0px rgba(0, 0, 0, 1);
        }



        #八卦>div:first-child {
            width: 50%;
            height: 100%;
            position: absolute;
            left: 0;
            background-color: black;
        }

        #八卦>div:nth-child(2) {

            width: 50%;
            height: 100%;
            position: absolute;
            right: 0;
            background-color: white;
        }

        #八卦>div:nth-child(3) {
            width: 200px;
            height: 200px;
            position: absolute;
            left: 50%;
            margin-left: -100px;
            border-radius: 50%;
            background-color: black;
        }


        #八卦>div:nth-child(4) {
            width: 200px;
            height: 200px;
            position: absolute;
            left: 50%;
            top: 50%;
            margin-left: -100px;
            border-radius: 50%;
            background-color: white;
        }



        #八卦>div:nth-child(5) {
            width: 50px;
            height: 50px;
            position: absolute;
            left: 50%;
            top: 75px;
            margin-left: -50px;
            border-radius: 50%;
            background-color: white;
        }



        #八卦>div:nth-child(6) {
            width: 50px;
            height: 50px;
            position: absolute;
            left: 50%;
            bottom: 75px;
            margin-left: -50px;
            border-radius: 50%;
            background-color: black;
        }



        #八卦-wrapper {
            height: 100vh;
            display: flex;
            justify-content: center;
            align-items: center;
            flex-direction: column;
        }


        #八卦-描述 {
            margin-top: 1em;
            font-size: 3em;
        }

    style>
head>

body>
    div id="八卦-wrapper">
        div id="八卦">
            div>div>
            div>div>
            div>div>
            div>div>
            div>div>
            div>div>
        div>
        div id="八卦-描述">道可道,非常道div>
    div>
body>

html>

拓展:手机端的转动的八卦

在原代码不变的情况下使用
@media(max-width:500px){ }来设置移动端的样式
(其中设置的样式为当在移动端的时候所展现的样式,没有在其中设置的样式默认使用客户端的样式)

移动端完整代码


html lang="zh">

head>
    meta charset="UTF-8">
    meta name="viewport" content="width=device-width, initial-scale=1.0">
    title>太极页面title>
    style>
        * {
            box-sizing: border-box;
            margin: 0px;
            padding: 0px;
        }

        body {
            background-color: #eeeeee;
        }

        @keyframes x {
            from {
                transform: rotate(0deg);
            }

            to {
                transform: rotate(360deg);
            }
        }

        #八卦 {

            width: 400px;
            height: 400px;
            border-radius: 200px;
            position: relative;
            overflow: hidden;
            animation: x 10s linear infinite;
            box-shadow: 0px 0px 5px 0px rgba(0, 0, 0, 1);
        }

        @media (max-width:500px) {
            #八卦 {
                width: 200px;
                height: 200px;
            }
        }

        #八卦>div:first-child {
            width: 50%;
            height: 100%;
            position: absolute;
            left: 0;
            background-color: black;
        }

        #八卦>div:nth-child(2) {

            width: 50%;
            height: 100%;
            position: absolute;
            right: 0;
            background-color: white;
        }

        #八卦>div:nth-child(3) {
            width: 200px;
            height: 200px;
            position: absolute;
            left: 50%;
            margin-left: -100px;
            border-radius: 50%;
            background-color: black;
        }

        @media (max-width:500px) {
            #八卦>div:nth-child(3) {
                width: 100px;
                height: 100px;
                margin-left: -50px;
            }
        }

        #八卦>div:nth-child(4) {
            width: 200px;
            height: 200px;
            position: absolute;
            left: 50%;
            top: 50%;
            margin-left: -100px;
            border-radius: 50%;
            background-color: white;
        }

        @media (max-width:500px) {
            #八卦>div:nth-child(4) {
                width: 100px;
                height: 100px;
                margin-left: -50px;
            }
        }

        #八卦>div:nth-child(5) {
            width: 50px;
            height: 50px;
            position: absolute;
            left: 50%;
            top: 75px;
            margin-left: -50px;
            border-radius: 50%;
            background-color: white;
        }

        @media (max-width:500px) {
            #八卦>div:nth-child(5) {
                width: 25px;
                height: 25px;
                top: 37.5px;
                margin-left: -25px;
            }
        }

        #八卦>div:nth-child(6) {
            width: 50px;
            height: 50px;
            position: absolute;
            left: 50%;
            bottom: 75px;
            margin-left: -50px;
            border-radius: 50%;
            background-color: black;
        }

        @media (max-width:500px) {
            #八卦>div:nth-child(6) {
                width: 25px;
                height: 25px;
                bottom: 37.5px;
                margin-left: -25px;
            }

        }

        #八卦-wrapper {
            height: 100vh;
            display: flex;
            justify-content: center;
            align-items: center;
            flex-direction: column;
        }


        #八卦-描述 {
            margin-top: 1em;
            font-size: 3em;
        }

        @media (max-width:500px) {
            #八卦-描述 {
                margin-top: 0.5em;
                font-size: 1.5em;
            }
        }
    style>
head>

body>
    div id="八卦-wrapper">
        div id="八卦">
            div>div>
            div>div>
            div>div>
            div>div>
            div>div>
            div>div>
        div>
        div id="八卦-描述">道可道,非常道div>
    div>
body>

html>

原创文章,作者:将军,如若转载,请注明出处:http://wpbbw.com/4199.html
